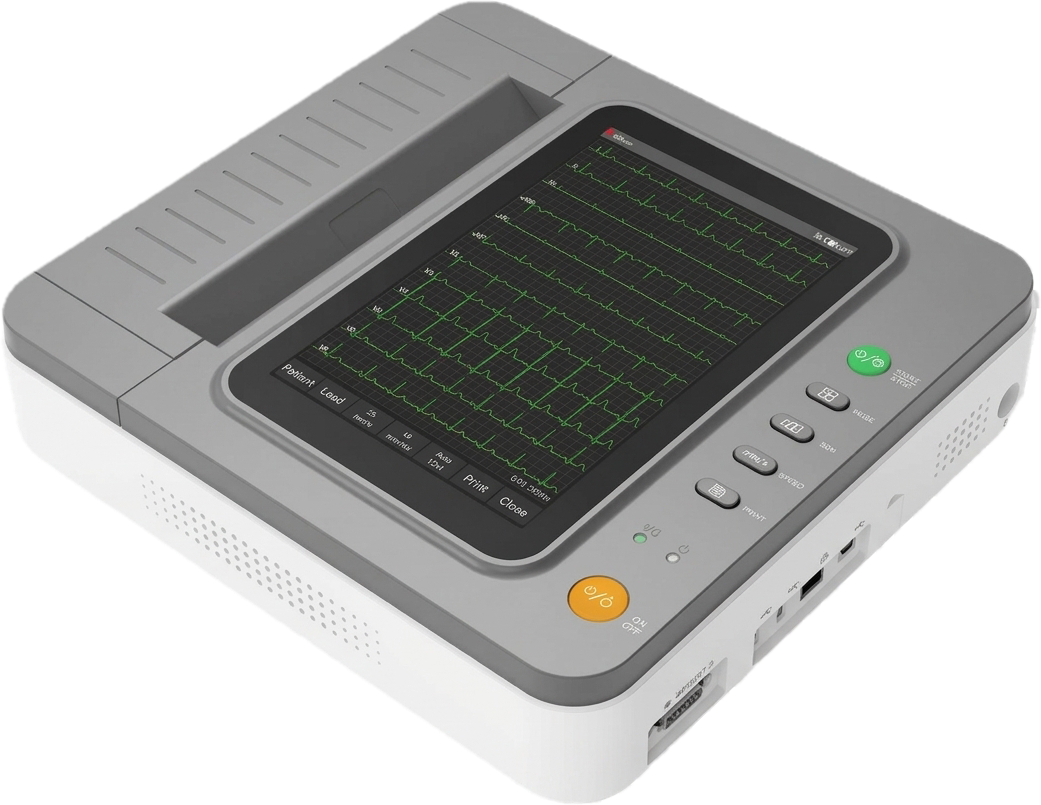

Electrocardiogram E12

Clinical & Operational Overview

+ Display with 1280*800 dots 10.1 inch high resolution color LCD, operate either by touch screen or function buttons, which is convenient and quick. • Sync collection for 12-lead ECG, support for 12-lead and Cabrera-lead waveform display, adopt digital signal processing nE gquauy ela power requency iter, • Display of 3/6/12-lead ECG wavefom on one screen, and HR value, print mode, sensitivity, paper speed, filter state, clock, battery level, background gridlines, measured data and interpretation information, etc. Prompting function for lead-off and overload, system working state. • The device can be powered either by AC or DC(can adapt to 50Hz/60Hz AC frequency), with built-in rechargeable lithium battery and charging circuit, perfect battery overcurrent and overvoltage protection circuit. • In optimal DC state, up to 10-hour standby time, continuous print more than 3 hours, record up to 1000 ECG waveform (commonly 3s case), which meets the requirements of visiting a patient at home and body examination. apabeo w, tAN, USE COmmunicaton(opional), can + Support external USB standard keyboard, mouse, scanner, prin ter (optional). Built-in thermal printer, support for Auto M'N, Auto M*N+1, Auto M*N+2, Auto M"N+3, rhythm M line, manual and other printing modes. The printed content contains time, paper speed, sensitivity, calibration signal, name of lead, filter state and patient's information. Information including printed waveform length, output measurementparaisht and intorual list can be set, and with time print function and auto arrhythmia print function, which meets different kind of requirement. With the functions of auto-measurement and auto-interpretation for routine ECG parameters, it can provide measurement results and auto-diagnosis conclusion for HR, PR Interval, P Duration, QRS Duration, T Duration, QT/QTc Interval, P/QRS/T Axis, R(V5), S(V1), (V5)+S(V1) amplitude, Cornell Index, etc. which can reduce the doctor s burden a lot. The built-in large-capacity memory can store at least 4000 medical records, making it easy for doctors to review medical records and statistical information. + Multi-language(Chinese, English) interface and report. Full touch screen with buttons operation, built-in virtual keyboard, support Chinese and tngsp ut methoasS. iewed, inquired, modified, transmitted and printed, with lead correction, be able to export to other electronic file formats ( such as dat, pdf, xml, bmp, jpeg, png etc.).
