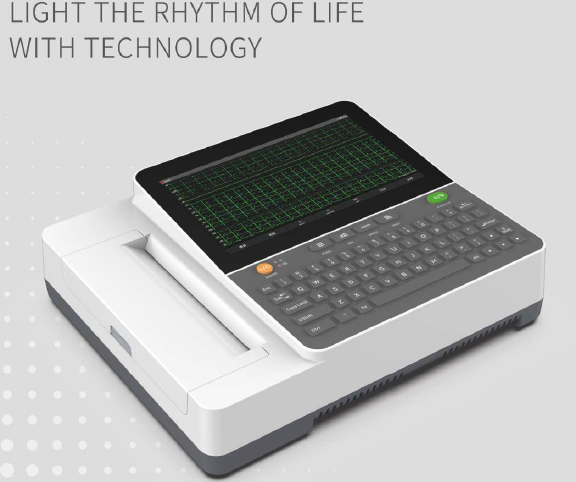

Electrocardiograph - E18
The device is an electrocardiograph which can collect 18-lead ECG signal synchronously and print ECG waveform by the thermal printer. It features in recording and displaying ECG waveform in auto/manual mode; measuring analyzing and diagnosing ECG waveform parameters automatically, promoting for "lead off", "Lack of paper" ;optional interface language (chinese, english,etc..) built in lithium battery, AC/DC; selecting rhythm lead willingly to observe abnormal heart rate' case database management , etc..
Clinical & Operational Overview
Sync Collection for 18 lead ECG, optional lead modes; 18-lead, 15-lead,12-lead,9-lead, etc or user defined, cabrera-lead waveform display. Get high quality ECG waveform via power frequency filter , baseline filterand EMG filter of Ecg signal Power Supply: AC/DC (which can adapt AC 50 /60Hz,) with built in rechargeble lithium battery, perfet over current and over voltage protection circuit. Support mobile communication wired and wireless network the case can be upload automatically, the report can be download and printed automatically Built in memory stores atleast 4000 cases (data saving time 10s) covenient for case review and statistic collection . Support external USB standard Keyoard, Mouse, Scanner and printer. Support ID Card reader Chinese, English operating interface, the report in corresponding language can be printed; built in virtual keyboard support chinese, english input method . In optimal DC state, upto 10hour standby time continouse print for more than 3 hour which meets the requiremnet of visiting a patient at home and body examination.
Technical Specifications & Clinical Parameters
HAAS-VERIFIED-DATA| Parameter | Technical Specification |
|---|---|
| Brand / Manufacturer | Contec |
| Warranty | 1 Years Onsite |
| Connectivity | Wi-Fi, LAN, USB |
| Certifications | CE / ISO 13485 |
