Patient Monitor CMS5500

Clinical & Operational Overview

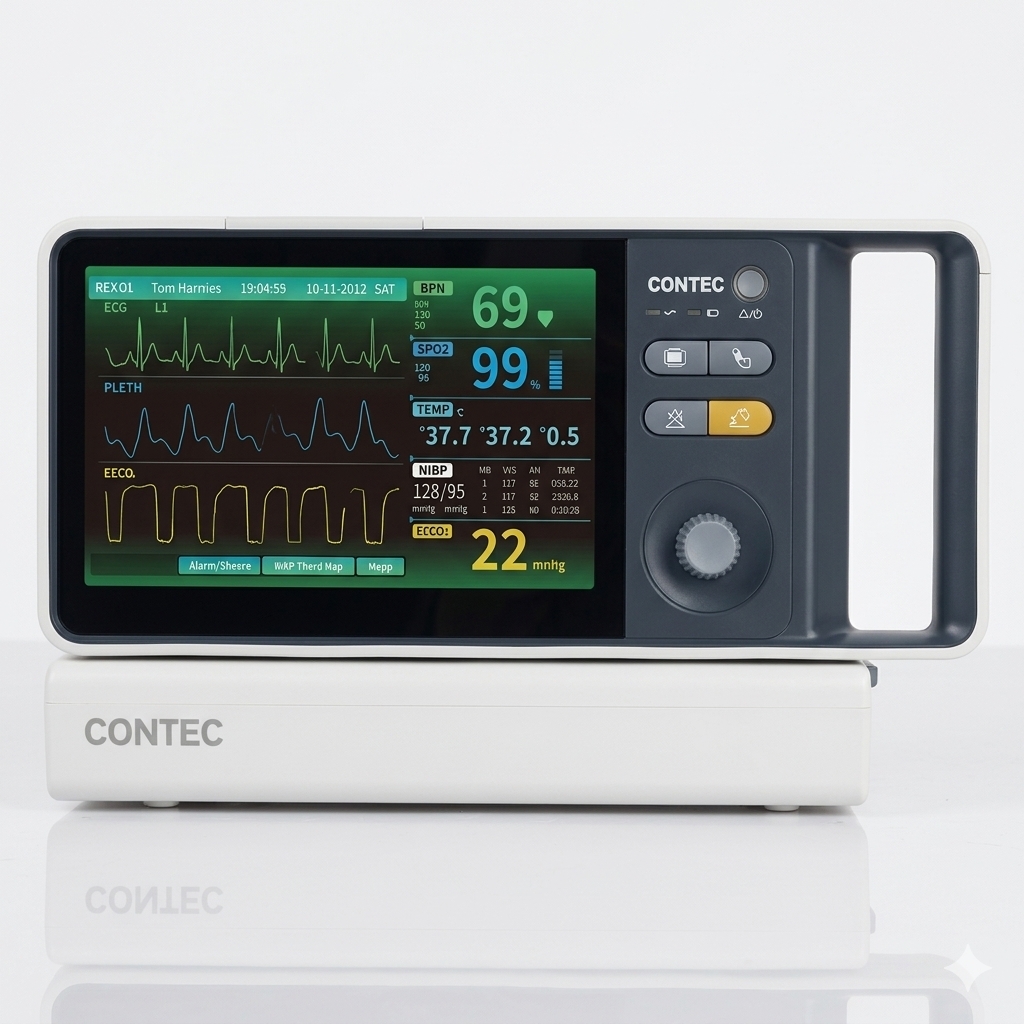

The machine consists of a high-definition color LCD screen alongside a push-button control panel and navigation wheel. It is currently showing real-time physiological waveforms and numeric metrics including: ECG (Electrocardiogram): Tracks heart rate (showing 69 bpm) and electrical heart rhythms. SpO2 (Oxygen Saturation): Monitors oxygen levels in the blood (showing 99%) along with a pulse plethysmogram waveform. TEMP (Temperature): Monitors body temperature channels (showing 37.7 °C). NIBP (Non-Invasive Blood Pressure): Displays blood pressure levels (showing 128/85 mmHg). EtCO2 (End-Tidal Carbon Dioxide): Tracks exhaled carbon dioxide levels (showing 22 mmHg). The device is built with an integrated handle, a modular slot system for hardware customizability, and a rechargeable base station enabling continuous bedside use or patient transport. 7-Inch HD Display: Equipped with a 7-inch high-definition color TFT LCD screen capable of rendering distinct multi-parameter waveforms and supports a multi-language interface. Highly Portable: Weighing under 2.2 kg (excluding battery and cords), it is built as a compact, lightweight unit easily mountable on tables, bedsides, rolling trolleys, or wall mounts. Fanless Architecture: Engineered without internal fans, making its operation completely silent and energy-saving. Crucially, this fan-free design eliminates forced air circulation, minimizing the risk of airborne cross-infection in sterile clinical environments. Modular Pluggable Design: Features a plug-and-play architecture that allows modules (such as ECG or CO₂) to be expanded or hot-swapped depending on active medical needs.
